Application Scenario
It is widely used in aerial perspective presentations of live events, performing arts programs, sports competitions, concerts, music festivals, wedding banquets, and fashion shows
Functions and Parameters
|
Model
|
FM6 MAX
|
|
Body size
|
520x130x220mm（Length x Width x Height）
|
|
Body material
|
carbon fiber
|
|
Unloaded weight
|
2kg
|
|
Payload
|
≤6kg
|
|
Speed range
|
≤2.8m/s
|
|
Operating voltage
|
DC 14.8V
|
|
Power supply interface
|
2 V-mount battery plates
(Independent power supply for stabilizer and cable car)
|
|
Battery life
|
≤8 hours
(When using a 14.8V, 290Wh, V-mount camera lithium battery, sold separately)
|
|
Remote Control
|
RC303: Multi-function remote control with 3D joystick
|
|
Wireless remote control
|
915Mhz: 4 frequency points (open environment ≥ 100 meters)
|
|
Cable car remote control
|
Stepless speed regulation: 1. Joystick; 2. Foot controller; 3. Automatic cruise
|
|
Stabilizer power supply base
|
All-in-one
|
|
Adapter stabilizer
|
RS4PRO、RS4、RS3 PRO、RS2
|
|
Stabilizer remote control
|
3-axis control/speed/direction/centering
Follow mode/multi-axis synchronization
|
|
Pre-stored key positions
|
4 (AB limit points + 2 preset positions)
|
|
DJI Intelligent Tracking
|
Open/Close/Frame
|
|
DJI RS
Follow focus motor control
|
Zoom Mode
* Manual lens can achieve powered zoom effect
|
|
Camera controller
|
Second-generation camera controller
*Integrated with Sony's micro-single-lens camera control protocol, enabling control of aperture, focus, zoom, recording, and other functions, such as those on the FX3 and FX30 models
*Integrated with DJI's gimbal control protocol, compatible with the R2, RS4PRO, RS4, RS3 PRO, and RS2 models
|
|
Camera remote control
|
Recording, zoom/zoom speed, focus, aperture, etc.
*Such as Sony FX6, Z200, Z90, etc.
|
|
Camera remote control
|
Aperture, shutter, ISO, recording, focus, etc.
|
|
*Applicable to all compatible cameras including RS4PRO, RS4, RS3 PRO, and RS2. Please refer to DJI's official website for specific models.
|
|
Camera zoom control
|
FX3/FX30: Zoom, Zoom Speed Control
*The zoom function on these cameras only works properly when used with a power zoom lens. For example:
1. FE 4/PZ 28-135mm Full-Frame Power Zoom Lens
2. FE 4/PZ 16-35mm Full-Frame Wide-Angle Power Zoom Lens
3. E 4/PZ 18-105mm Power Zoom Lens
4. E 4/PZ 10-20mm Ultra-Wide-Angle Power Zoom Lens
|
|
Cableway material
|
Φ5mm ultra-high molecular weight polymer fiber rope
|
|
Standard ropeway length
|
300 M
|
|
Recommended span
|
20～60 M
|
|
Gain antenna
|
Standard
|
|
Foot controller
|
Standard
|
Product Features
1. Cable Car: Carbon fiber, 6kg payload, stepless speed regulation
2. Dual Cable Car Design: Safety first
3. Multi-function Remote Control: Combines control of the cable car, gimbal, camera, and focus motor
4. Camera Controller: Compatible with Sony mirrorless cameras and DJI gimbal control protocols. Compact and lightweight, it can be mounted on a camera or gimbal to remotely operate the camera and gimbal for shooting.
*Integrated with Sony mirrorless camera control protocols, allowing control of aperture, focus, zoom, and recording functions, such as the FX3 and FX30 models
*Integrated with DJI gimbal control protocols, compatible with the R2, RS4PRO, RS4, RS3 PRO, and RS2 models
5. Gimbal Remote Control: The cable car integrates the DJI RS SDK protocol, allowing control of gimbal rotation, pitch, roll, and pan
*Compatible with the DJI RS4PRO/RS4/RS3 PRO/RS2
6. Intelligent Tracking Control: Remotely activates and deactivates the DJI Intelligent Tracking module and allows for composition adjustments in Intelligent Tracking mode.
7. DJI RS Focus Motor Control: Zoom Mode
* Power zoom with manual lenses
8. Camera Remote Control: Aperture, Shutter, ISO, Record, Focus, etc.
*Compatible with all compatible RS4PRO, RS4, RS3 PRO, and RS2 cameras. Please refer to the DJI official website for specific models.
9. Camera Zoom/Zoom Speed Control: Compatible with models such as the Sony FX3/FX30
*The zoom function on these cameras will only function properly when used with Sony power zoom lenses. For example:
1. FE 4/PZ 28-135mm Full-Frame Power Zoom Lens
2. FE 4/PZ 16-35mm Full-Frame Wide-Angle Power Zoom Lens
3. E 4/PZ 18-105mm Power Zoom Lens
4. E 4/PZ 10-20mm Ultra-Wide-Angle Power Zoom Lens
10. Camera Remote Control: Zoom/zoom speed, focus, aperture, recording, and other functions, such as those for Sony FX6, Z200, and Z90.
11. AB Limit Points: Conveniently set the safe operating range of the cable car on the remote control.
12. Pre-stored Key Positions: Move the cable car to your desired location at any time.
13. Multi-Axis Synchronized Cruise Control: The cable car and gimbal can achieve multi-axis synchronization for automatic cruise shooting.
14. Wireless Remote Control: The standard fiberglass boost antenna can be extended by 3 meters, enabling control distances exceeding 100 meters in open air environments.
15. Foot Control: The cable car can be controlled by foot.
16. Long-lasting Battery Life: The stabilizer and cable car are powered by independent V-mount batteries for easy use and replacement.

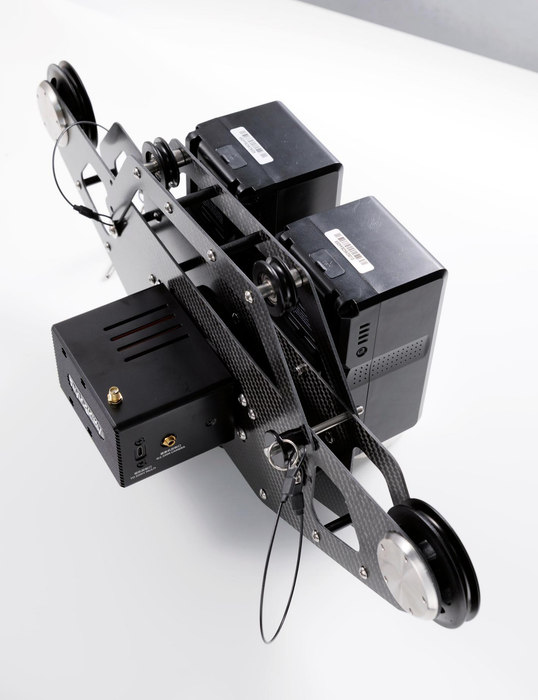

Carbon fiber cable car
Made of carbon fiber, with 4 wheels, it is powered by a high-torque servo motor, offers precise positioning, is silent and smooth, and has stepless speed regulation. It has certain climbing and hovering capabilities, and its payload reaches 6 kg.

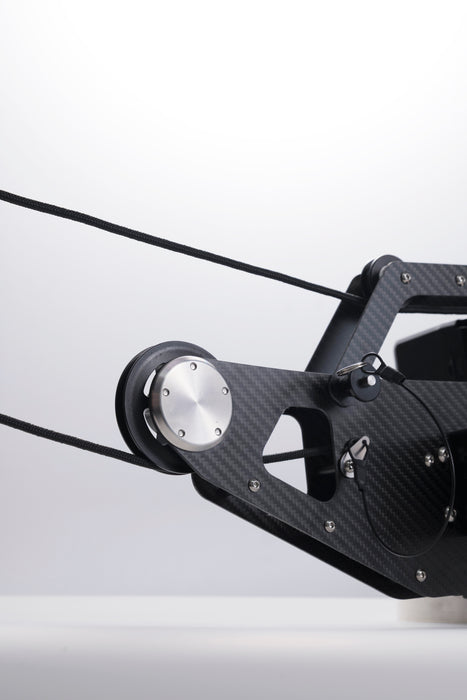

Double ropeway design
The double cableway design of main cableway plus safety cableway not only increases the safety factor of the cable car, but also enhances stability.

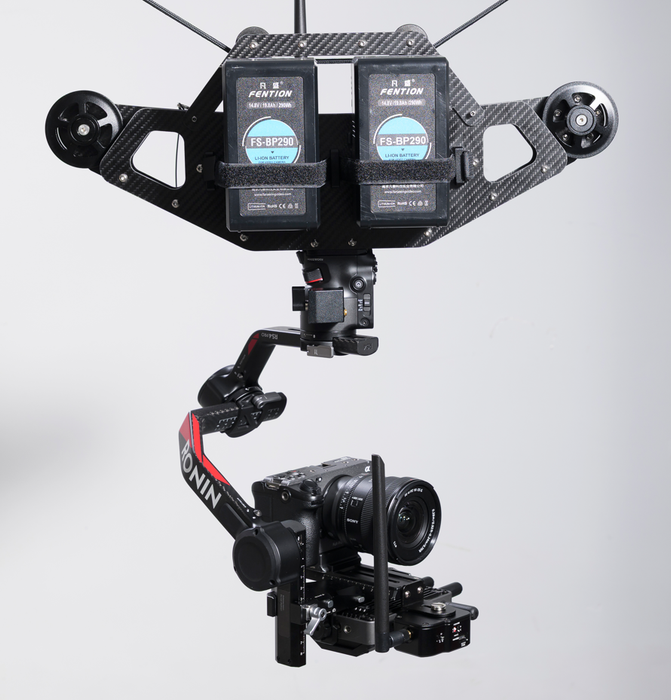

DJI Integrated Power Supply Base
An integrated gimbal power supply base compatible with the DJI RS2, RS3 Pro, RS4, and RS4 Pro (RS3 Pro and RS4 Pro are recommended). Simply install a V-mount lithium-ion battery to power the base, allowing you to mount the gimbal and use it directly without the need for power cables.

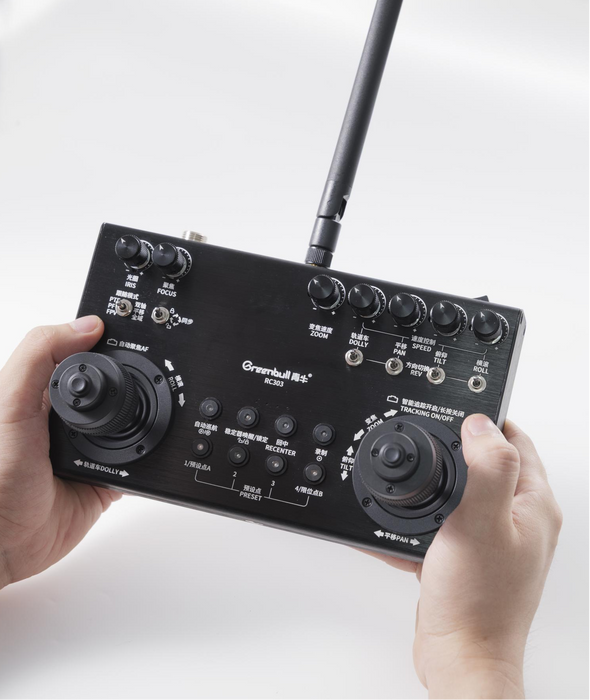

Multi-function remote control
The FM6 MAX is equipped with the new RC303 multi-function remote controller with a three-dimensional joystick, which integrates the control of the cable car, stabilizer, camera/camcorder, and focus motor. It is designed in Chinese and English, and the operation is simple, clear and easy to understand.

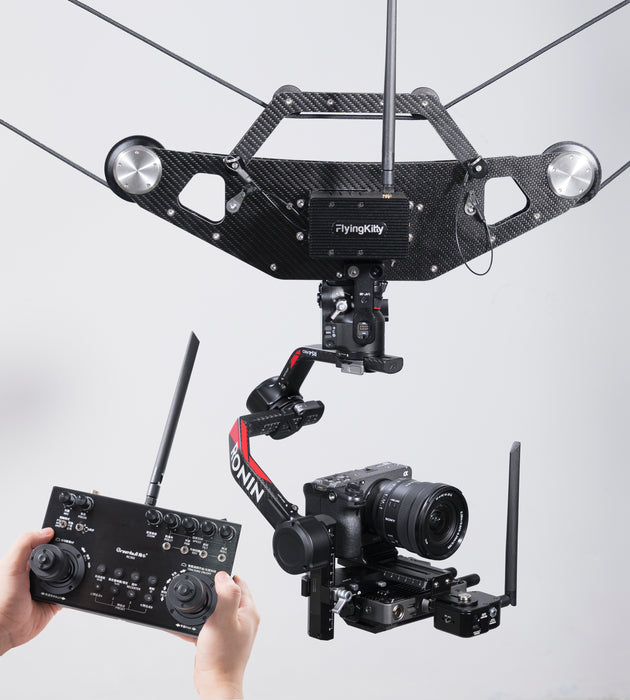

~~Combination display 1~~
1. FlyingKitty FM6 MAX
2. DJI RS4 Pro Stabilizer
3. Sony FX3 Cinema Camera
4. FE 4/PZ 16-35mm Full-Frame Power Zoom Lens
5. DJI Wireless Image Transmission
6. V-Mount Camera Lithium Battery

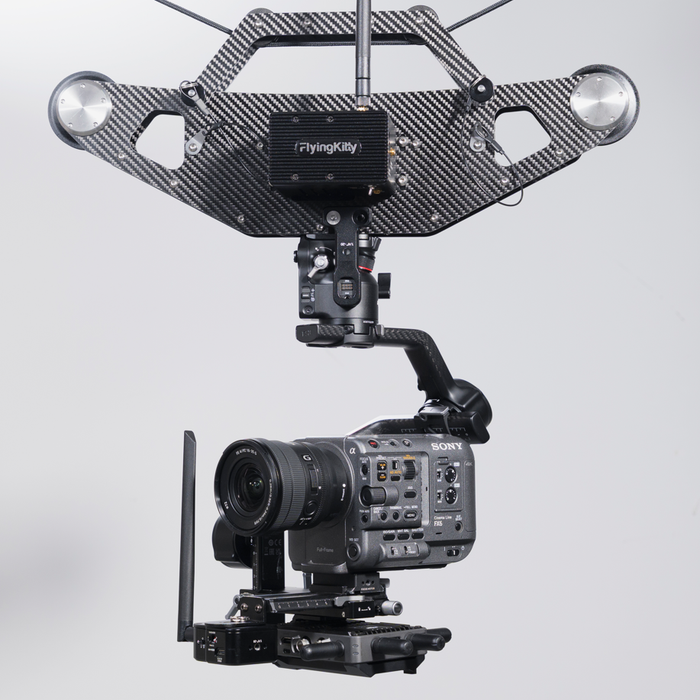

~~Combination display 2~~
1. FlyingKitty FM6 MAX
2. DJI RS4 Pro Stabilizer
3. Sony FX6 Cinema Camera
4. FE 4/PZ 16-35mm Full-Frame Power Zoom Lens
5. DJI Wireless Image Transmission
6. V-Mount Camera Lithium Battery
~~Product details display~~
![]()
![]()
~~FM6 MAX packing list~~
~~FM6 MAX packing list~~
