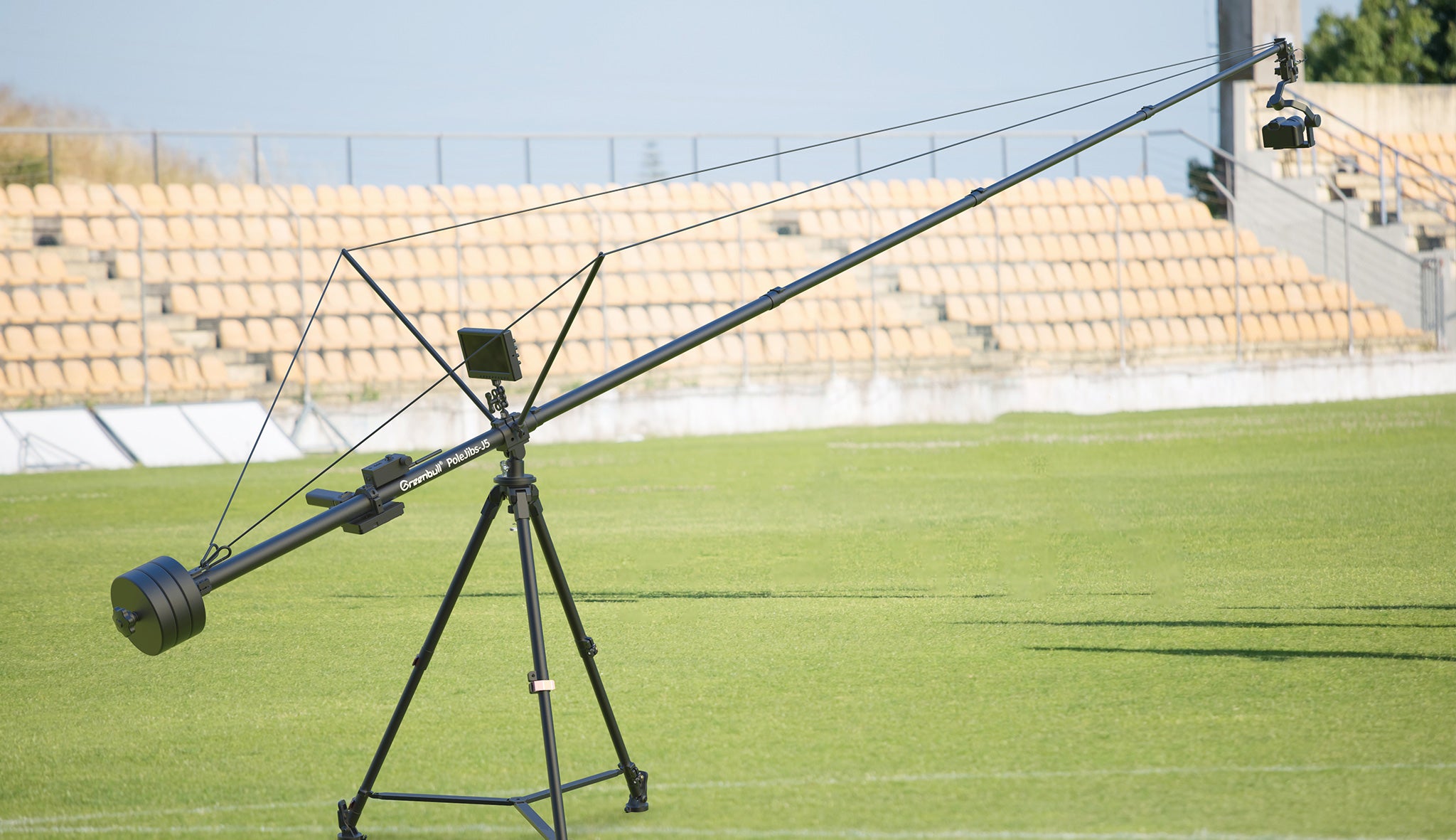

Extension-type Portable Camera Jib
Polejibs-J5 is a telescopic portable camera jib can up to 5.6 meters. It can be equipped
with a stabilizer or an electric PTZ. It is easy to operate, flexible to use and convenient to
carry. It is widely used in various shooting occasions.
Jib with five telescopic
Jib with five telescopic Fully extended lengths is 5.6m and can load 5kg.
shrinking, it 1.48 and only 6 kg.
Max payload is 12.5 kg
5.6m can bear 5kg, and 4m can bear 12.5 kg. can equipment with SLR stabilizer and DJI R2
Adopts ARRI gear disc rotatable design
J5 Length also can be 5.6m: can shoot deep into a narrow space, and vertically, and
meet the high camera position shooting needs.

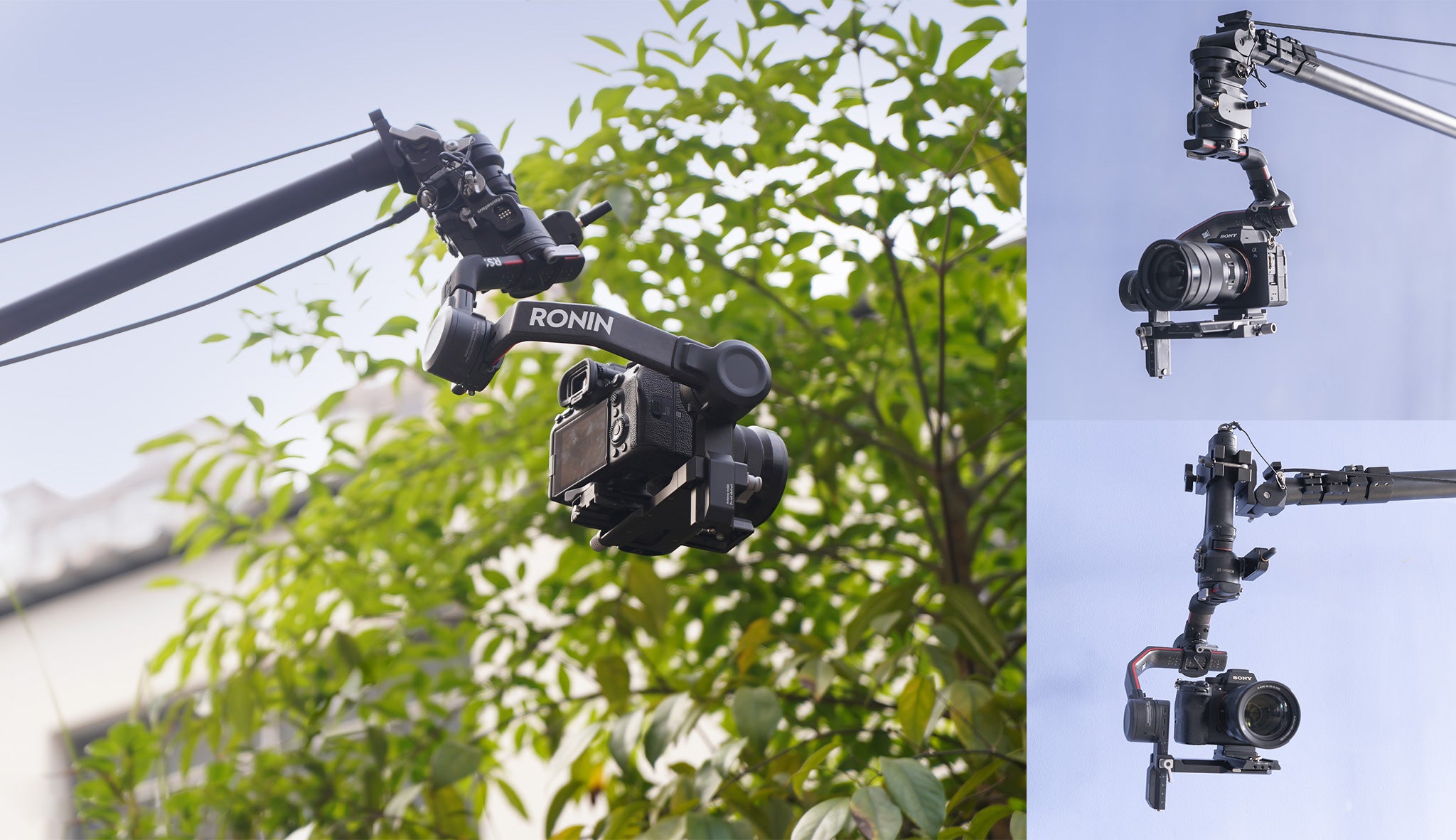

Suitable with DJI RS3 PRO/RS2/R2 Base
Compatible with DJI RS3 PRO, RS2 and R2 gimbal bases, and can also be easily equipped with common handheld gimbal in the market.

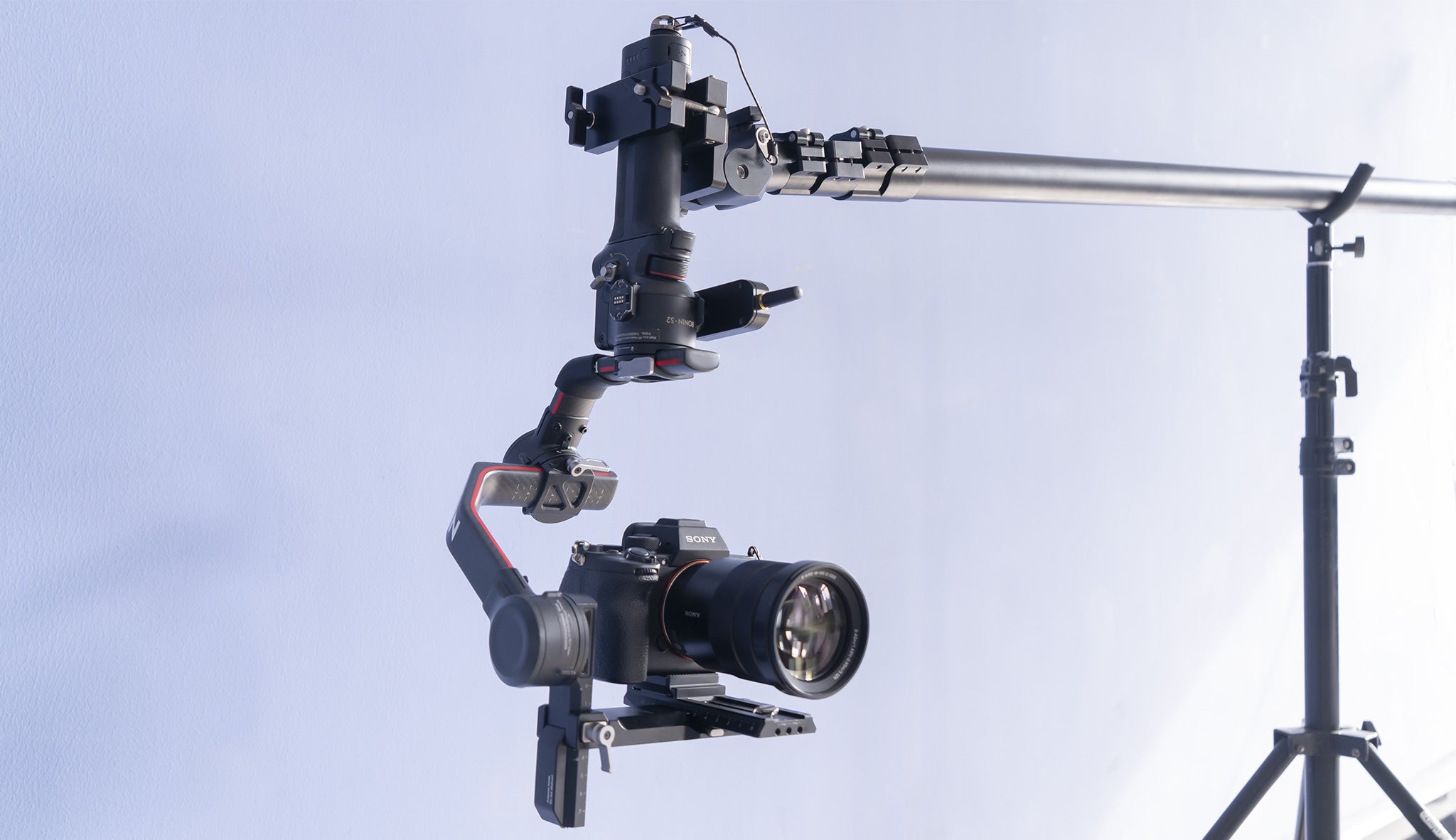

Equipped with the new version of the DJI RS3 PRO stabilizer
Optional DJI RS2 power base, compatible with DJI RS2 and RS3 PRO stabilizers.
DJI RS3 PRO/RS2 Wireless Controller
DJI RS3 PRO/RS2 Wireless Controller Can control rotation, pitch, roll, and direction switching.
Light Stand or Tripod can be Support
installed on the pan/tilt quick release plate and supported by the camera pan/tilt.
Simple Operation
it only needs to be pulled, simple, convenient, and fast.

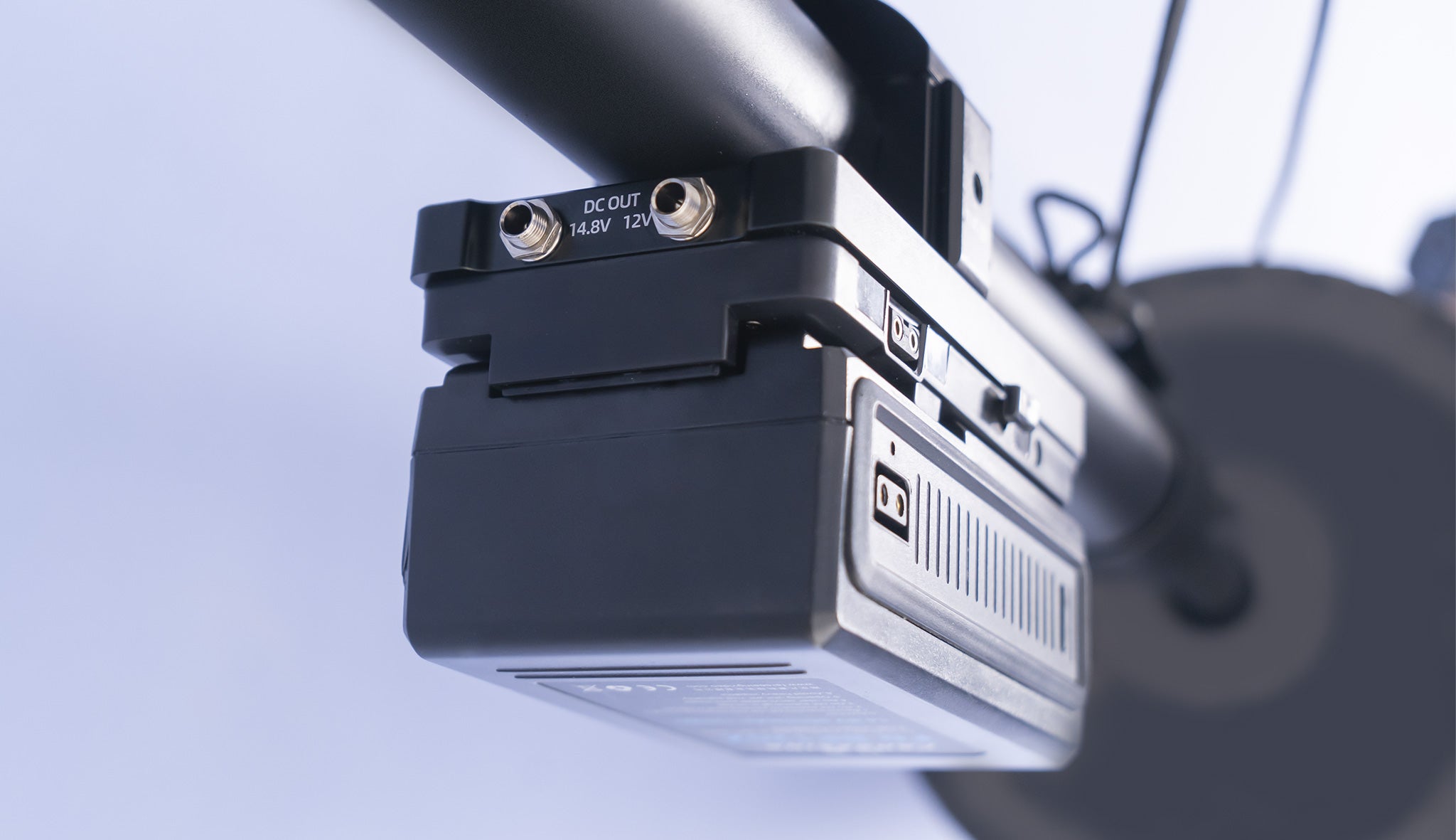

V-mount Lithium Battery Power Supply
Powered by V port battery, output two power supplies, a 12V power supply for monitor,
other 14.8 V powers for DJI RS3 PRO/RS2
Forearm Support Frame
Forearm Support Frame Easy to adjust.

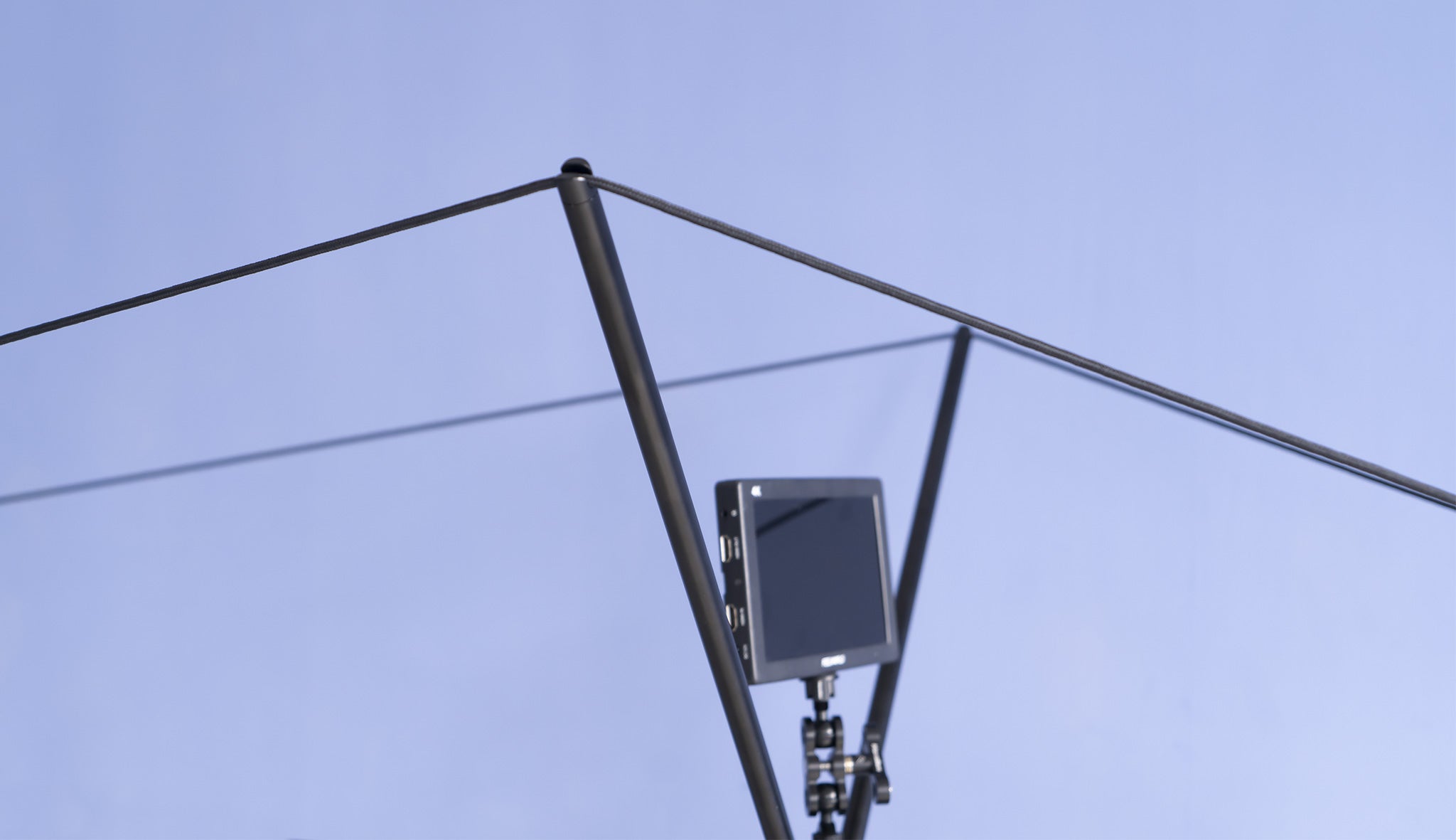

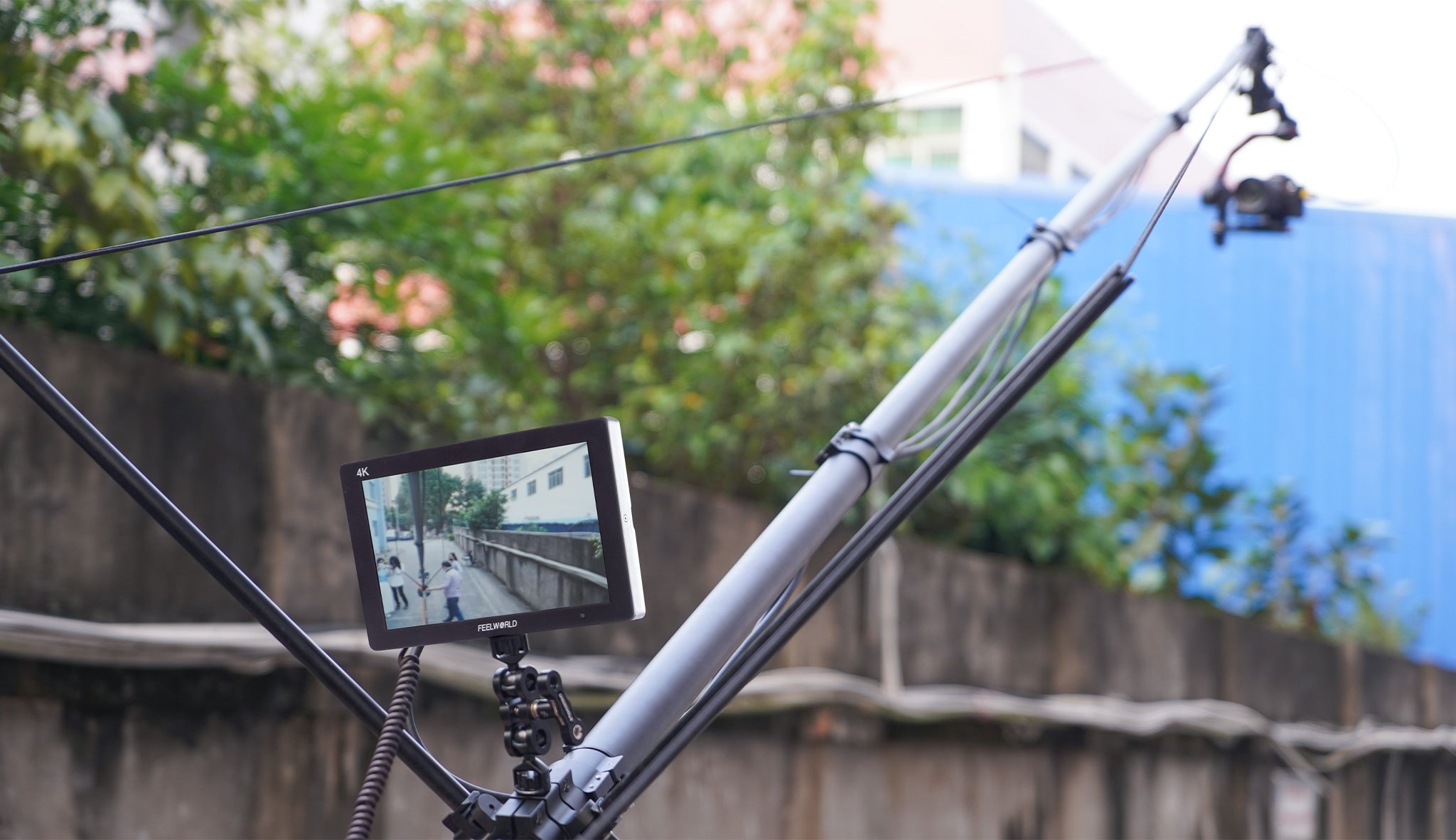

Convenient Expansion
Universal support mounting monitor.

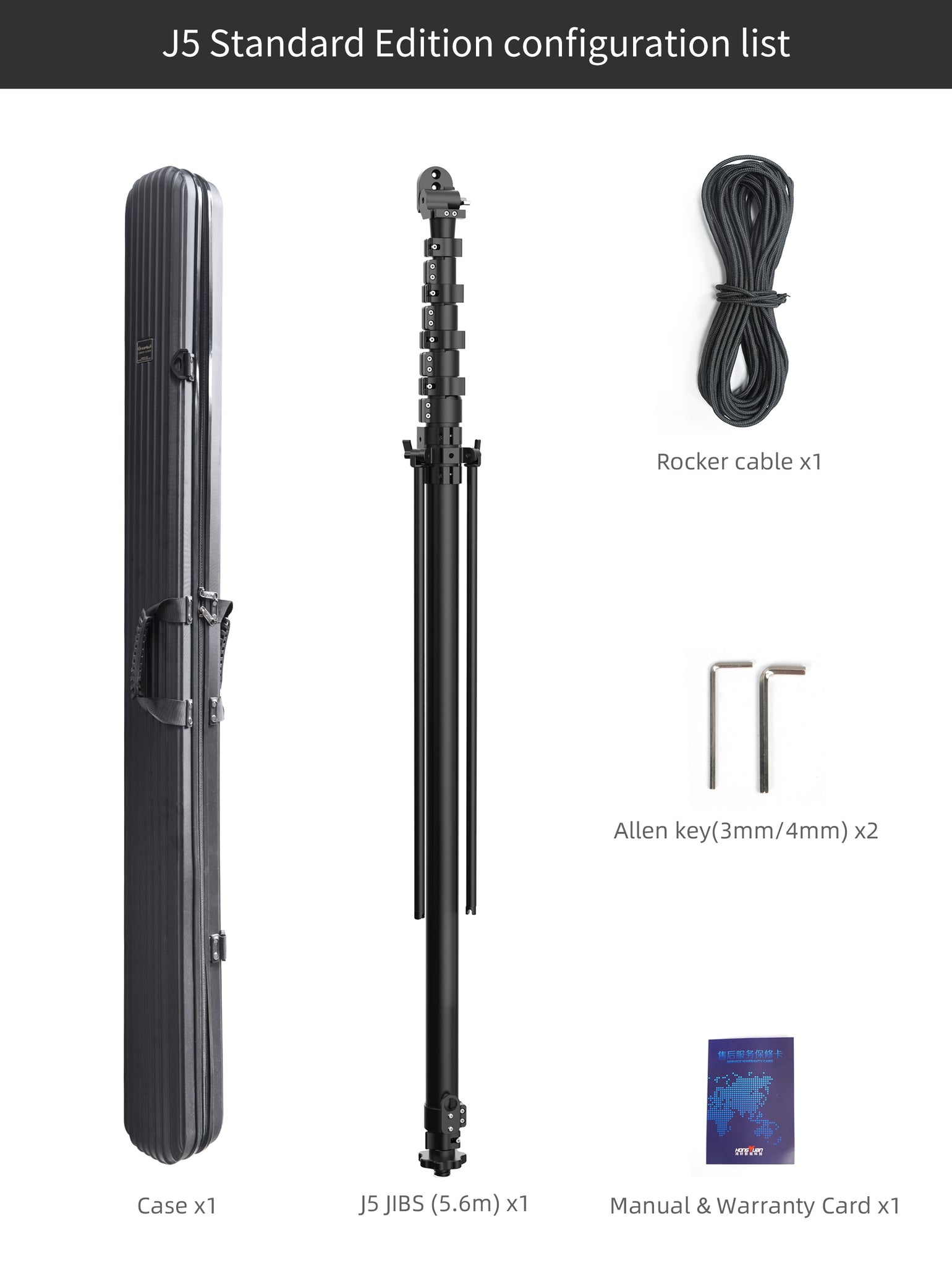

Practical and portable
The fully retracted rocker arm is 1.48 meters long, and the overall carrying weight is only 6KG.A carrying case can be carried easily.
Specifications
Product：J5 Extension-type Portable Camera Jib
Size：5600x860x630mm（fully expanded）
1482x132x123mm（fully retracted）
L1 (rear fixing rod)：1250mm
L2(front movable rod)：232mm-4350mm (stretchable)
Weight：6kg
Material：Aluminum alloy, black anodized
Adaptation voltage：DC14.4～17V
Adaptation Battery :14.8V-V port battery (sold separately)
Lifetime：14.8V-130Wh camera lithium battery x 1 (more than 4 hours)
Note:Except clearly indicated,data in this page all from the internal experiment of Hong xuan.
Under certain conditions,actual performance will be different.
