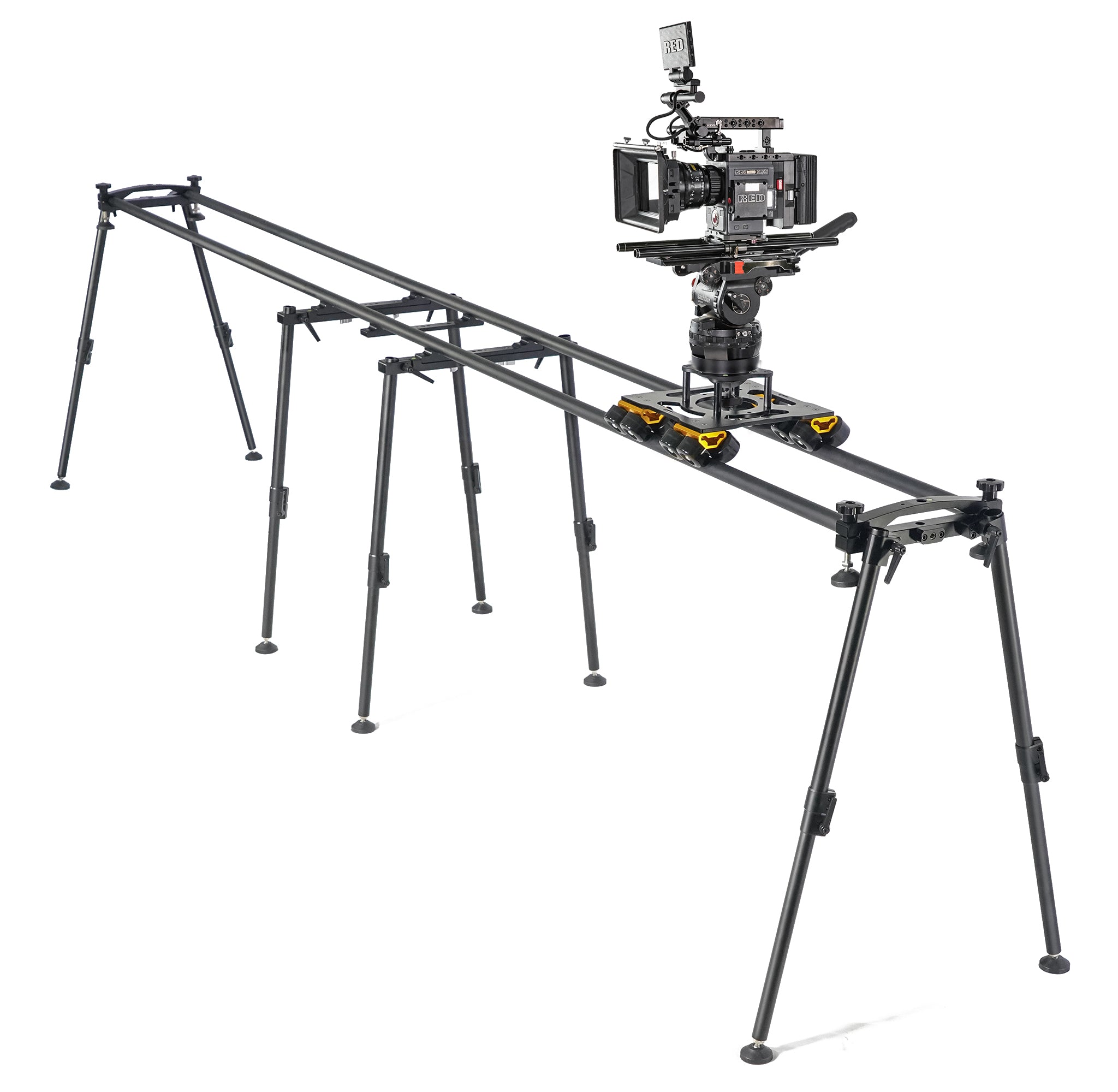

Greenbull BX300 Portable Camera Slider
BX300 series is equipped with 16-wheel slide car and the load- bearing is 70kg, which can not only bear large-load equipment, but also make the slide smooth. With 1 meter telescopic elevated leg, the slide height adjustment is more convenient and flexible. 4m splicing sliders can be combined freely and assembled easily. The roller equipment is packed in bag, which is portable as always.
* Appearance design patent: Camera Slider (BX300 kit) Patent No.: ZL201930424174.4
* Patent for unity model: A Kind of Unmanned Camera System for Camera Slider Patent No.: ZL201930424174.4

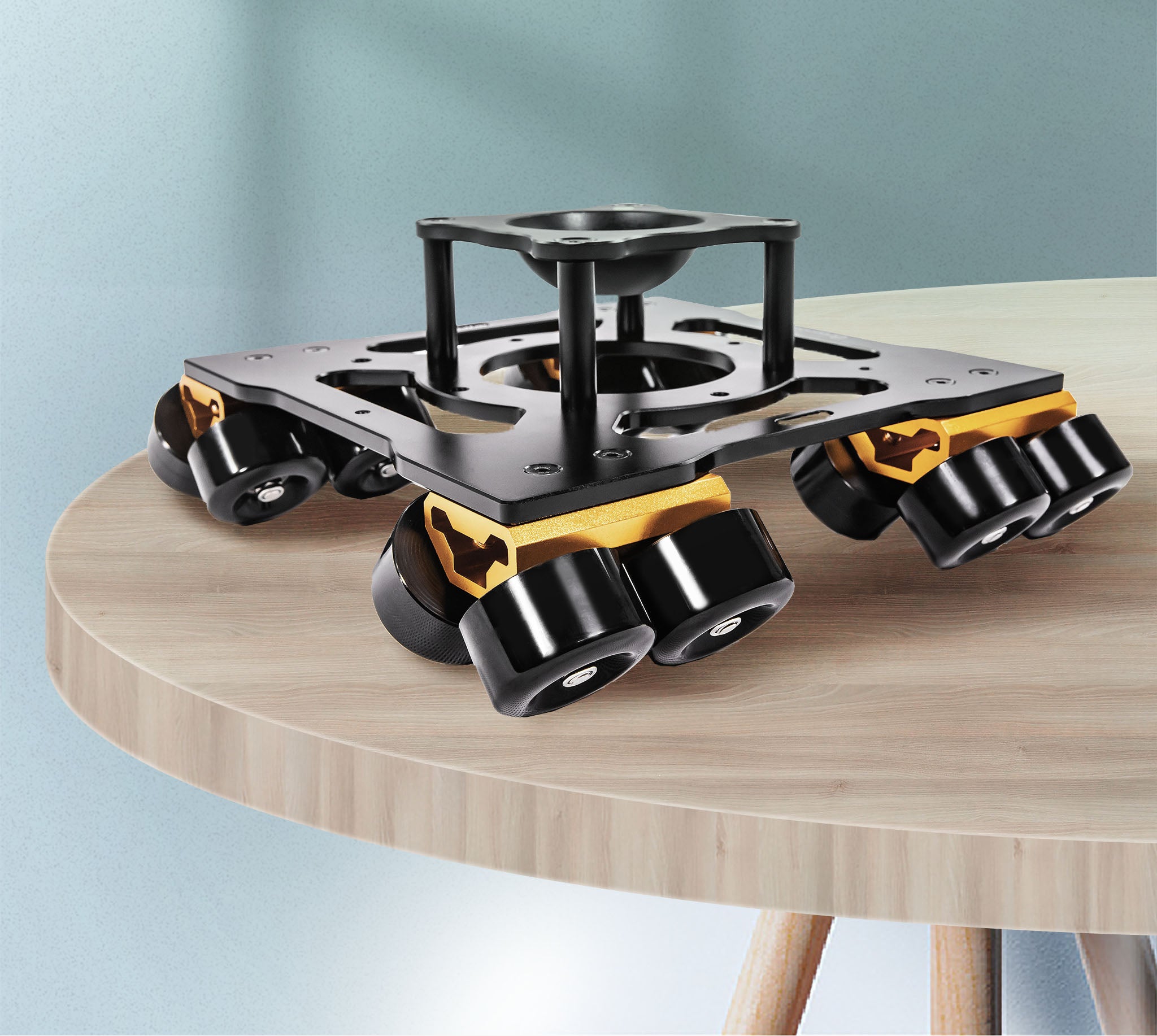

4×4 slide car
The operation is more smooth and stable with CNC digital control slide car and 4×4-wheel silent track wheel. It can load 70kg and is easy to deal with large camera equipment.

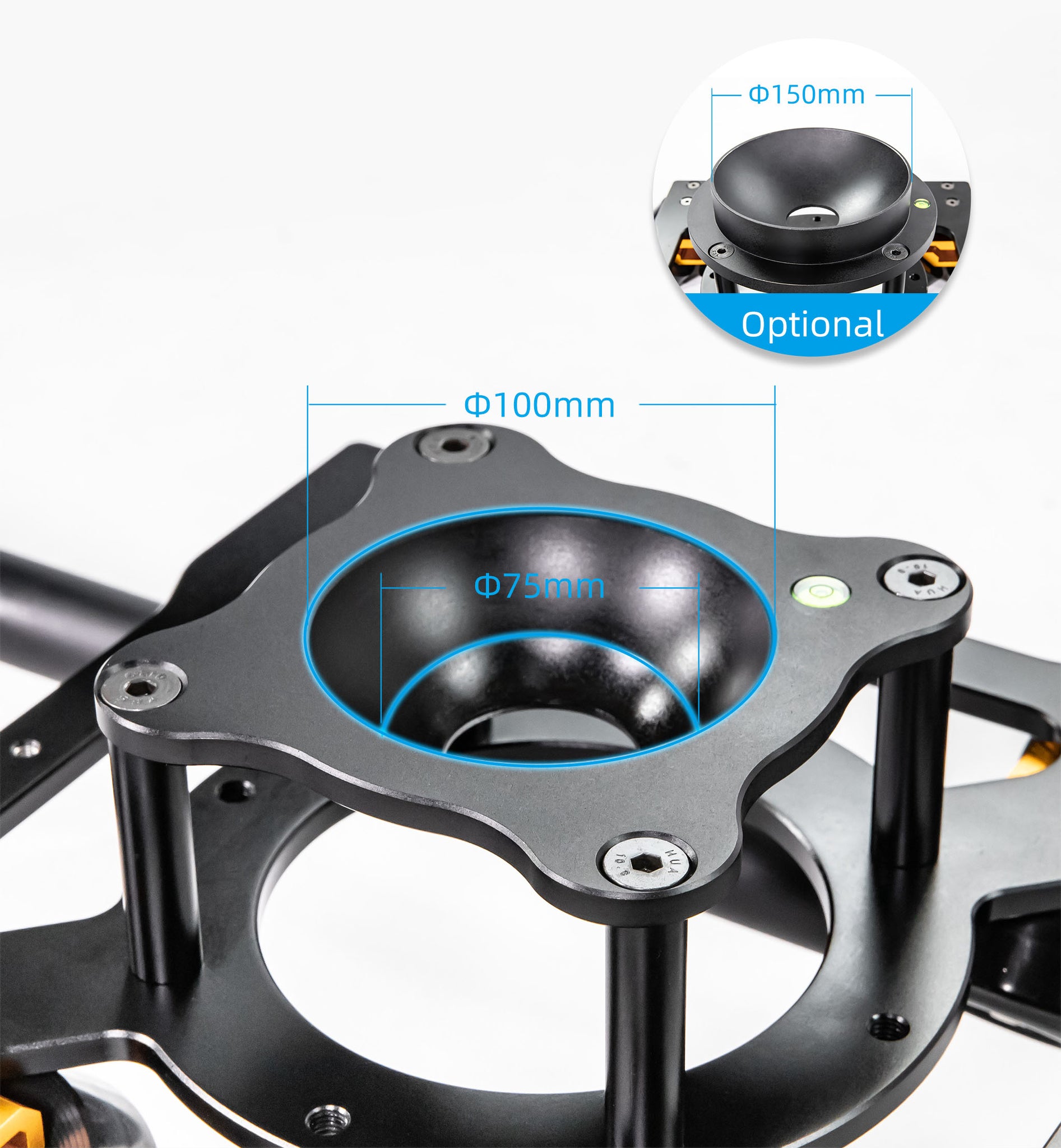

Multi-caliber bowl head Yuntab base
The standard configuration is 100&75mm bowl head Yuntab base, and the optional configuration is 150mm bowl head Yuntab base, which is inclusive and flexible.

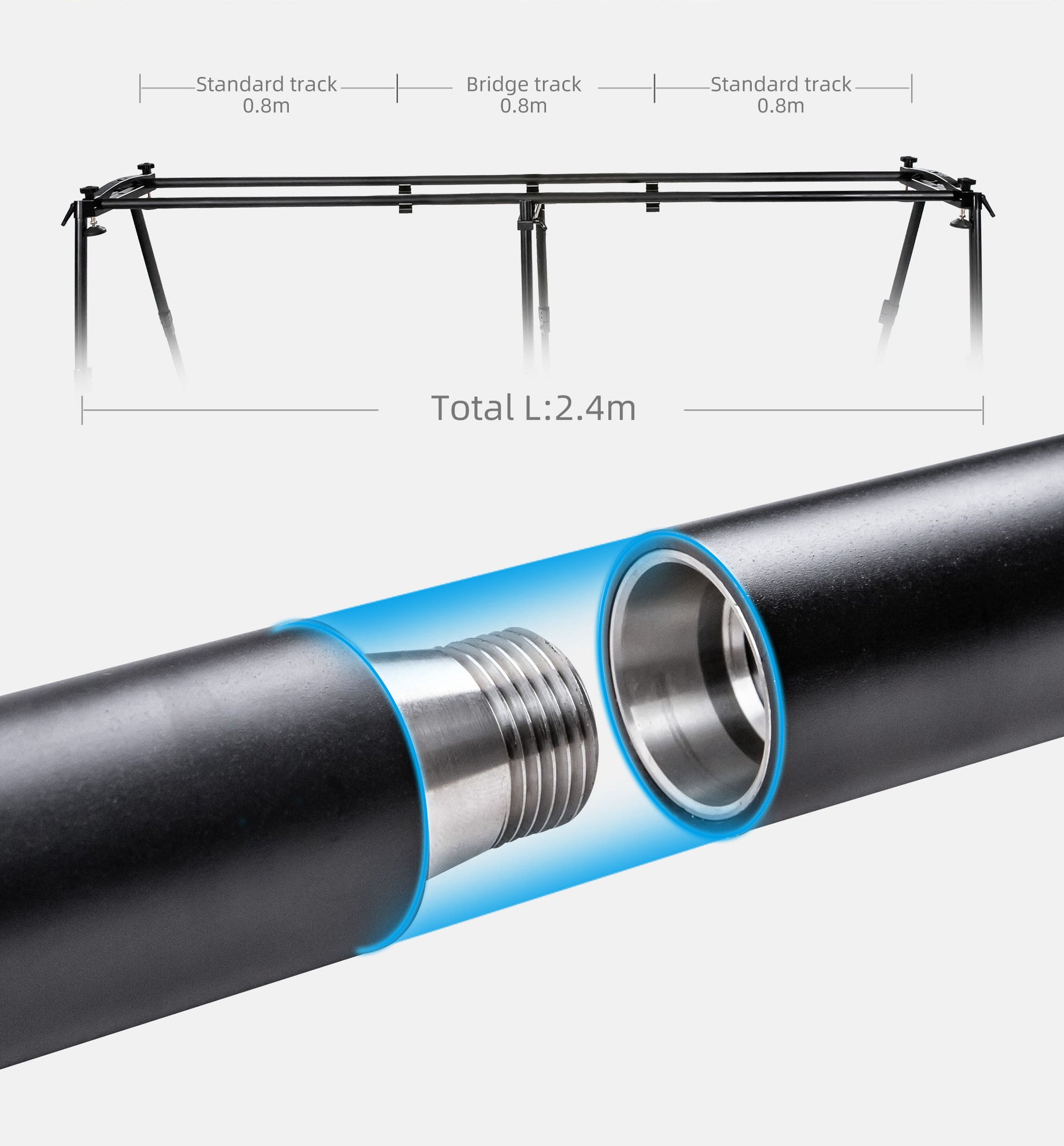

4 m splicing slider
BX300 track is divided intosplicing track, bridge track and extension track. Stainless steel thread is adopted to dock and the total length can reach 4m. It can be assembled into multiple modes of 1.6m and 2.4m with free combination and easy assembly.

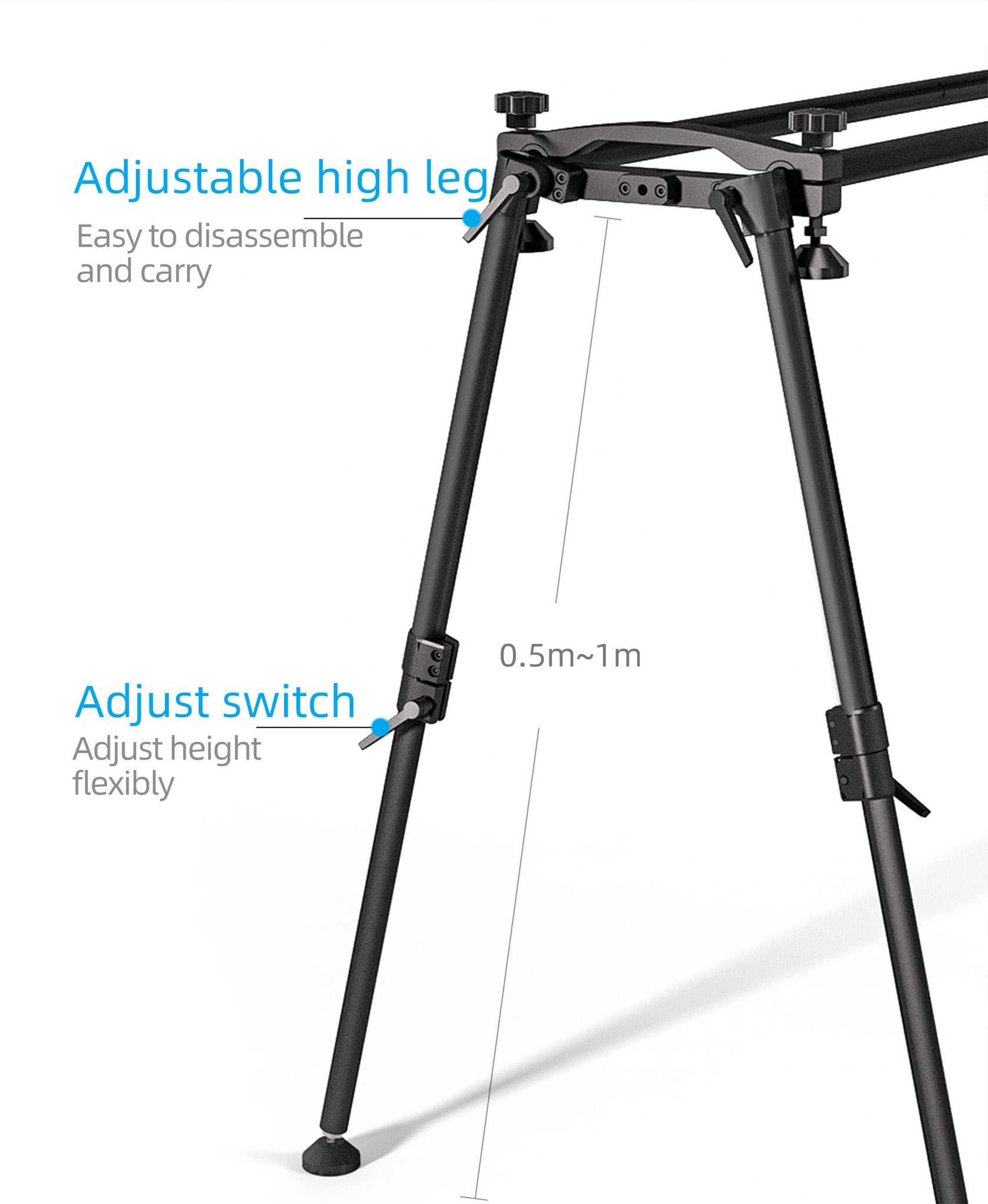

1 m telescopic high leg
BX300 adopts telescopic elevated leg whose regulation range is 0.5-1m. The slider height can be adjusted flexibly according to the field shooting requirements.

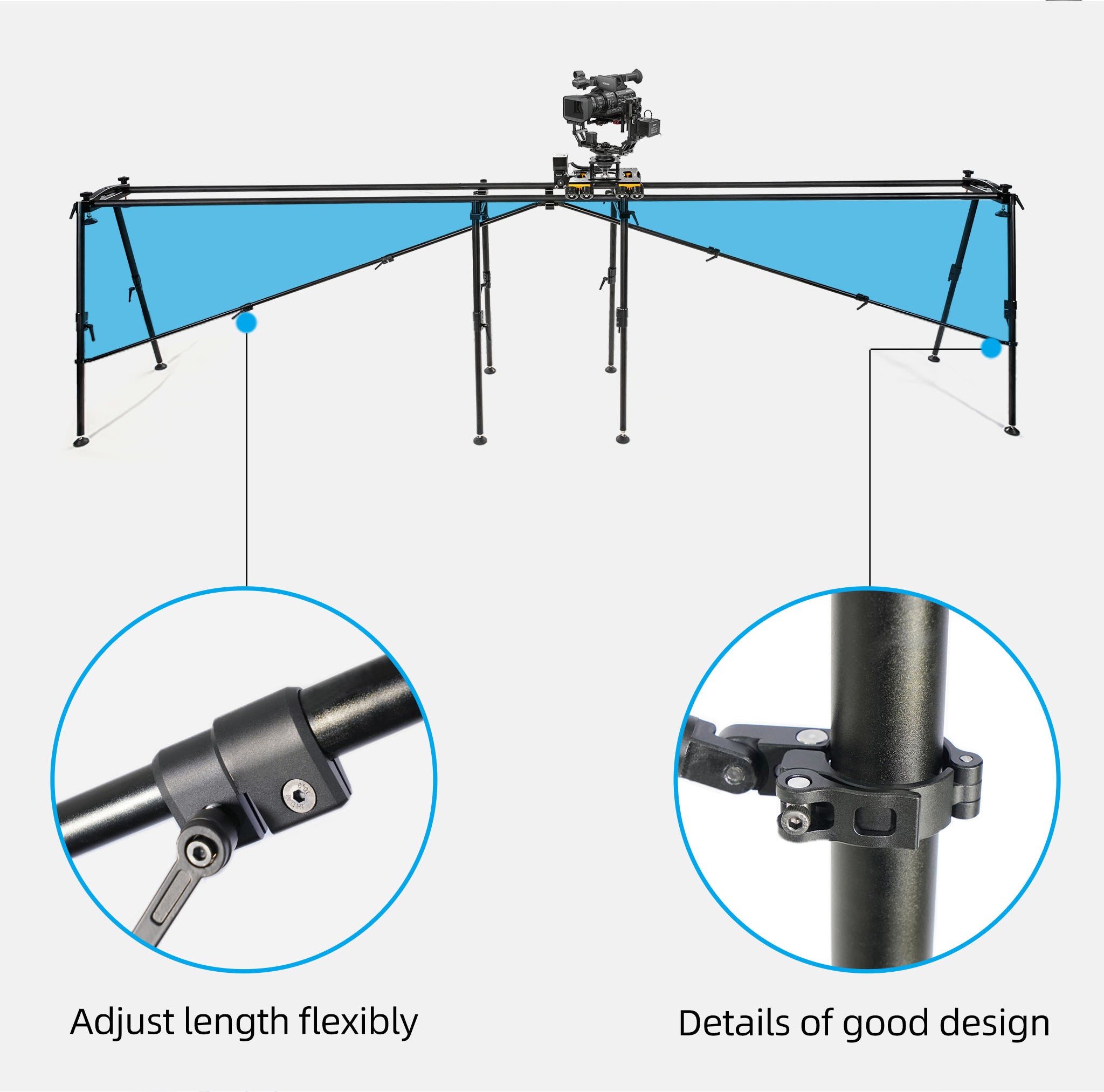

Telescopic oblique brace stabilizer bar
Telescopic oblique brace stabilizer bar is equipped. The stability principle of triangle is used to enhance the stability of slider.
Roller portable package
The whole set of equipment is packed in the roller equipment package, which is convenient to carry. You can go with different packages based on your needs.

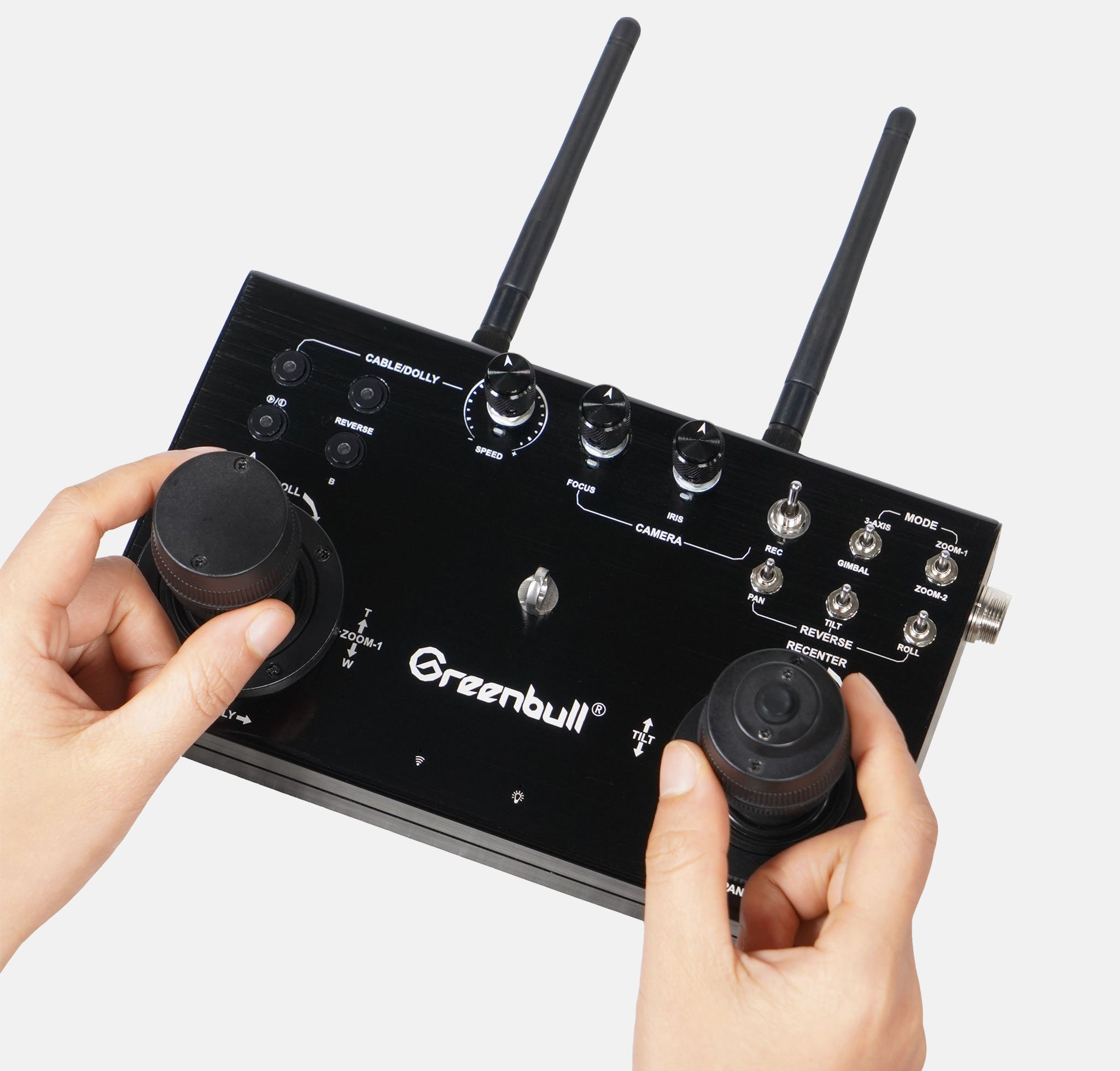

Multi-functional remote control
2.4G digital wireless console with 3D rocker integrates electronic control slider, electronic control Yuntab and camera control in one, with the multi-axis synchronous automatic control function of slide car and Yuntab, as well as AB point positioning, cruise control, manual control, etc. Equipped with pedal controller, it is soft and smooth to start and stop and has strong anti-interference ability. The control distance is not less than 100 m in open environment.

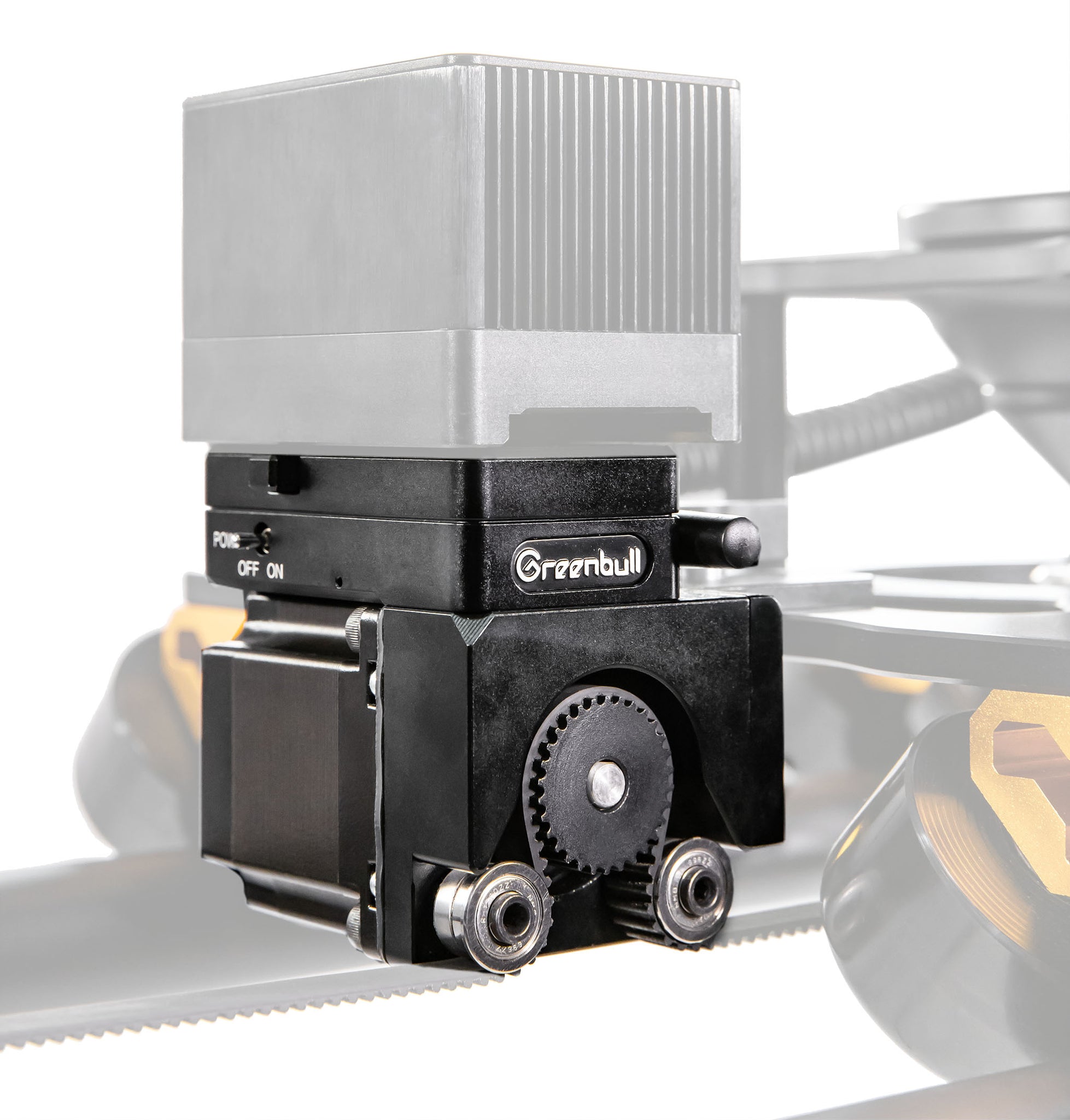

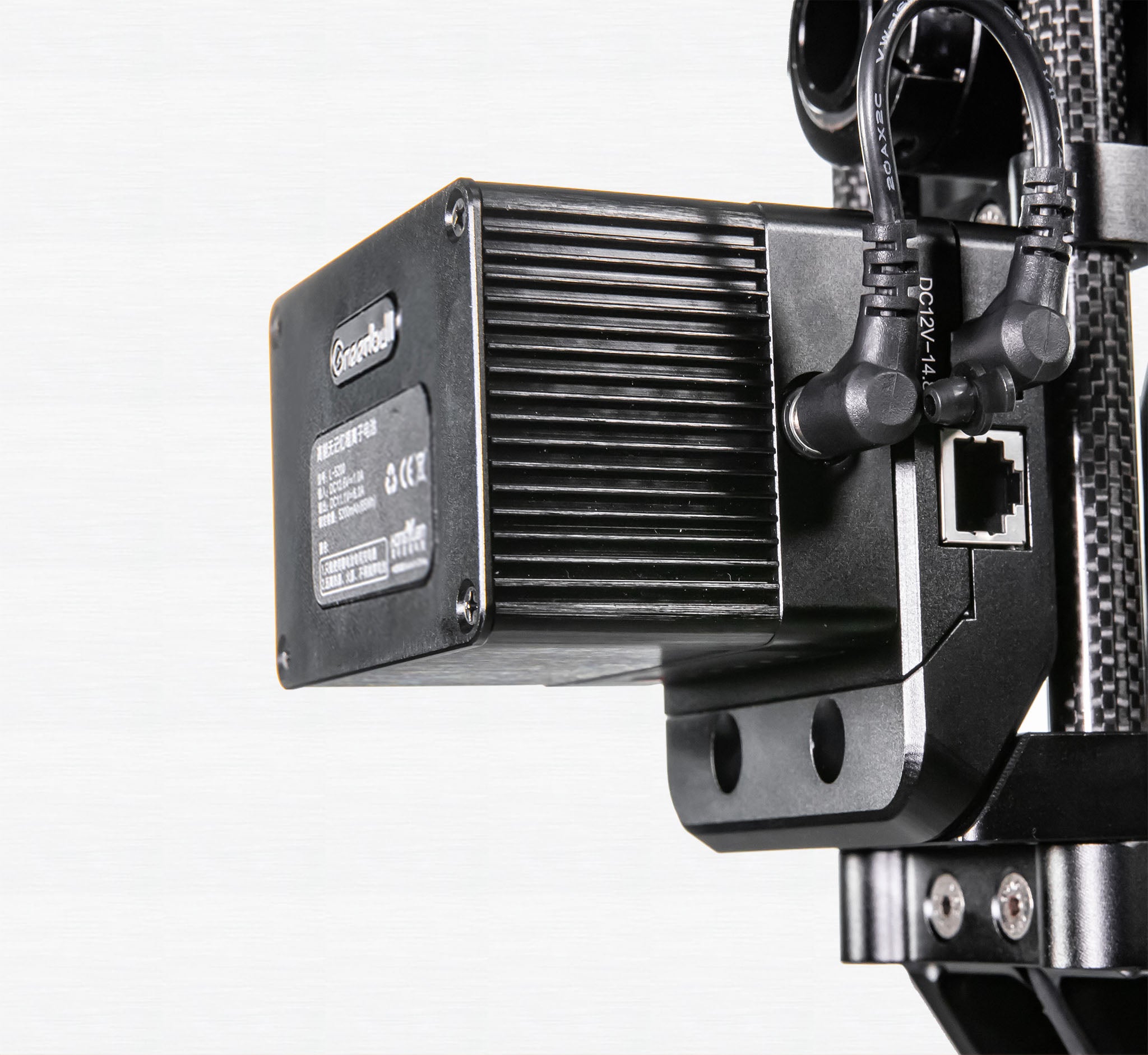

High torque servo motor
It is driven with synchronous belt using servo motor with high torque as the power motor of slide car. It is convenient to install, collect and carry.

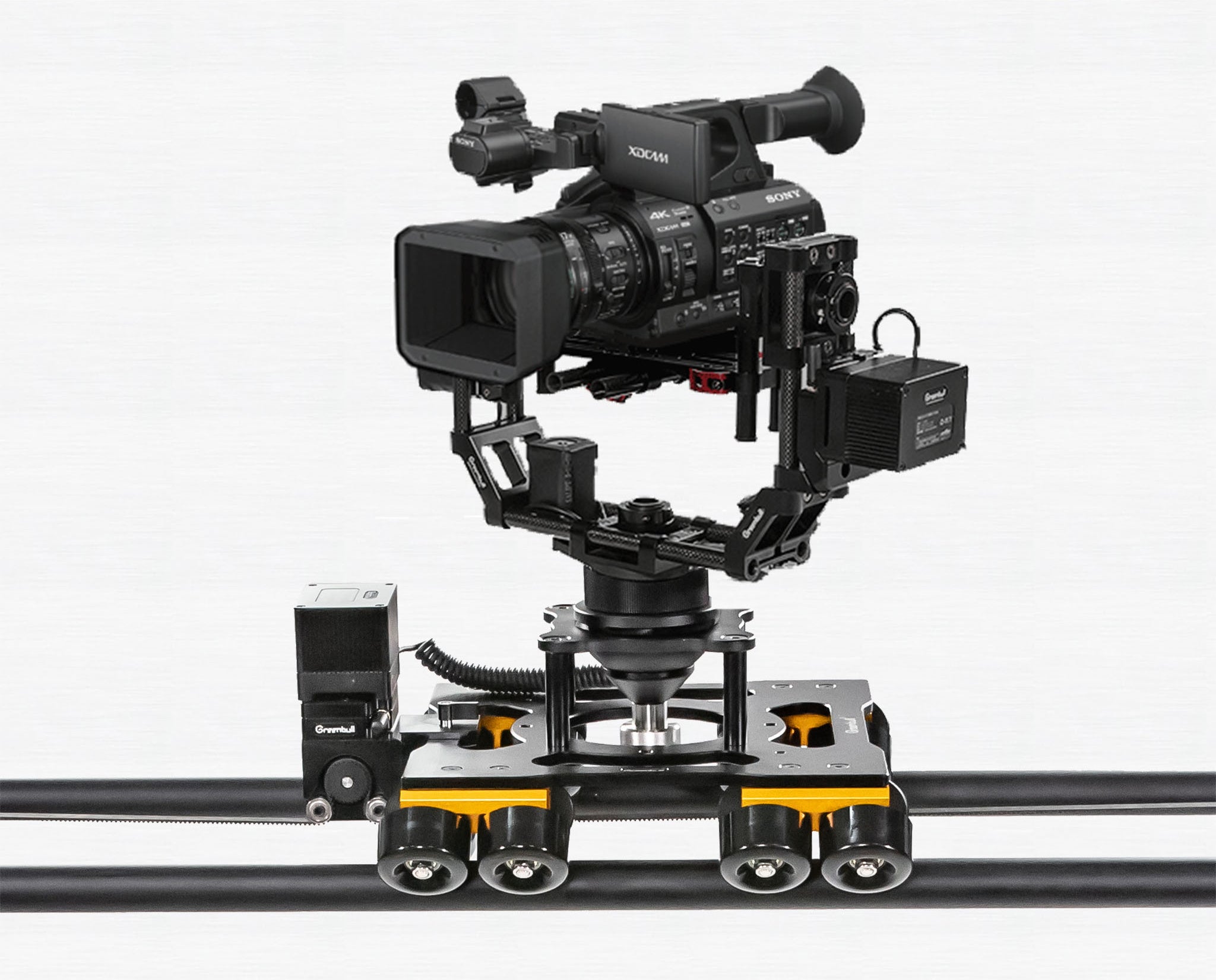

T2 intelligent electronic control Yuntab
It is divided into type L and type U. A multi-axis synchronous automatic camera system is composed with the electric control slide car by adopting a stepping motor and controlling the rotation speed and angle by a pulse signal. It can achieve multi-axis repeated track shooting, and can also be carried on the rocker arm, foot frame, car rack and other equipment to use. It is compatible and multi-purpose.

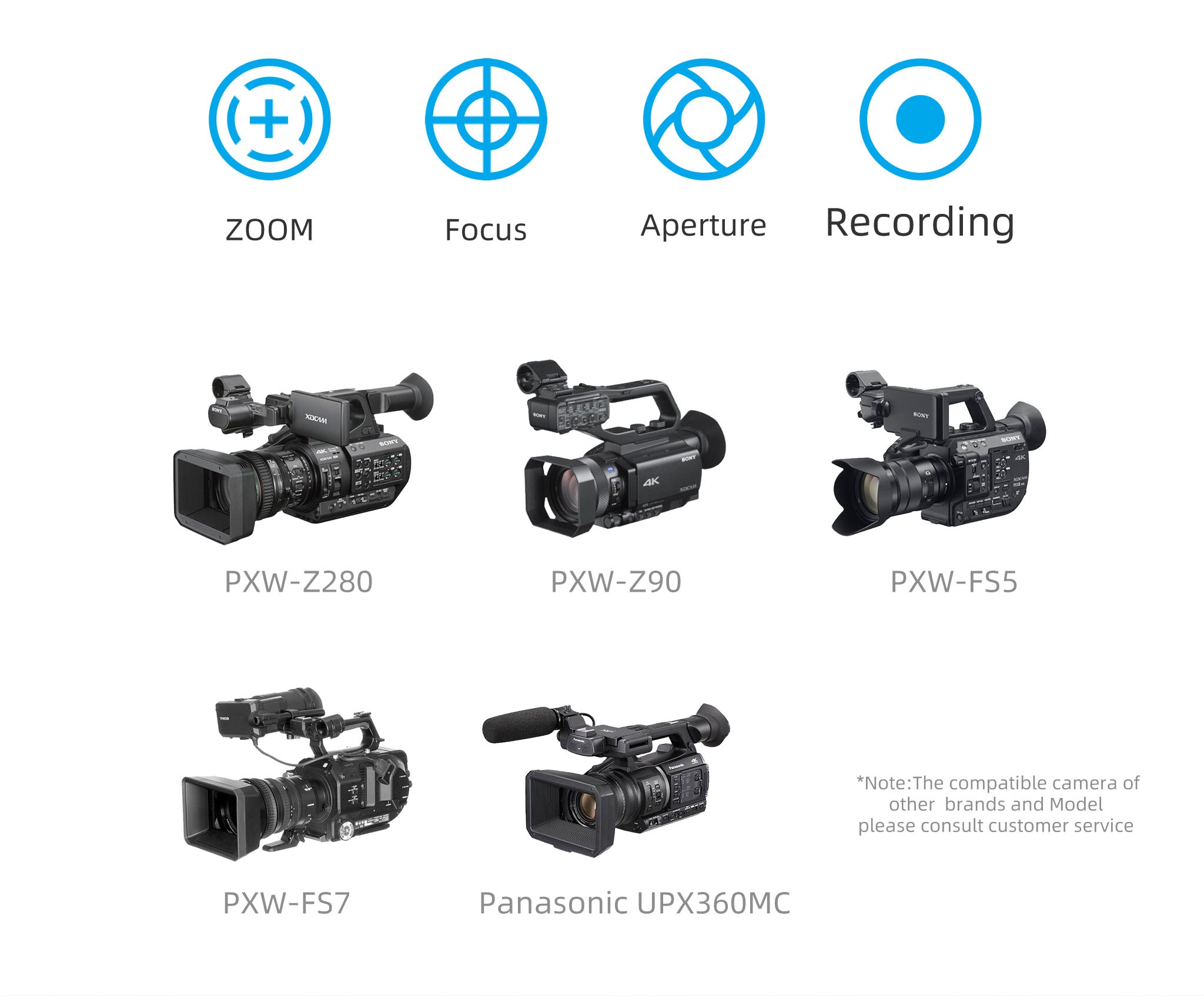

Camera remote control
BX300 electronic control system is equipped with camera remote control function, which is compatible with the camera of mini audio (Φ2.5mm) and remote control jack (LANC protocol) , such as Sony Z90/Z280/FS5/FS7 or Panasonic UPX360MC camera, etc.. It can control zoom, focus, aperture, recording and other functions.
High-capacity lithium battery
Electronic control kit is equipped with lithium battery, magnesium-aluminum alloy wire-drawing shell, CNC refining, anodizing process and LED electricity display. With Sony V Lock of high current and high capacity, it can provide power for BX300 electronic control kit.

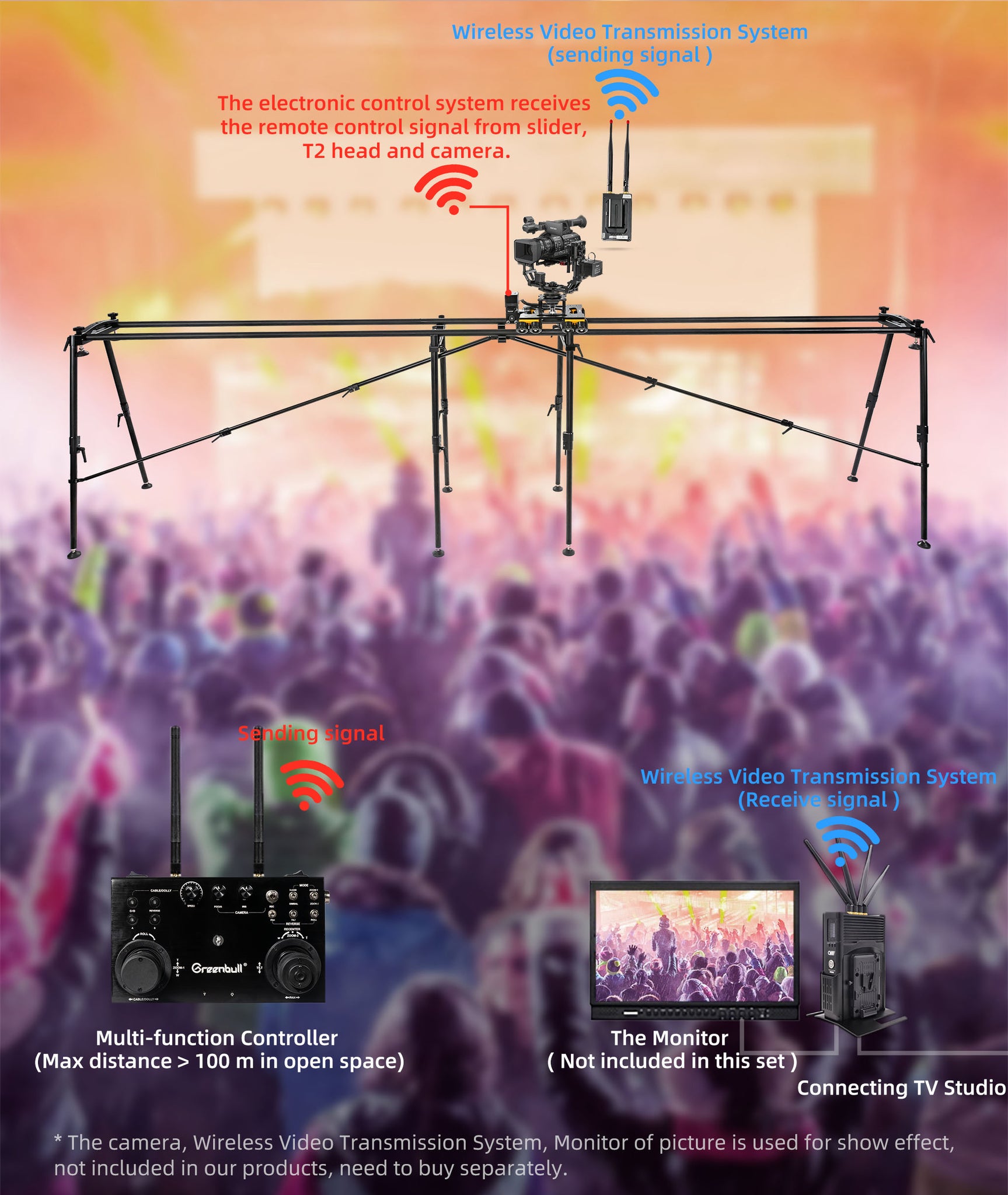

Transforming remote control orbit camera robot
After BX300 is equipped with multi-axis electronic control system, a portable remote control orbit camera robot can be formed to realize remote control camera. It can easily cope with the challenge, whether it's film and TV drama or party shooting.
